Instalační kabely

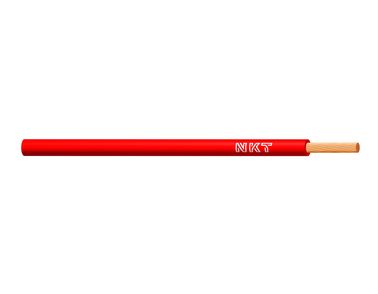

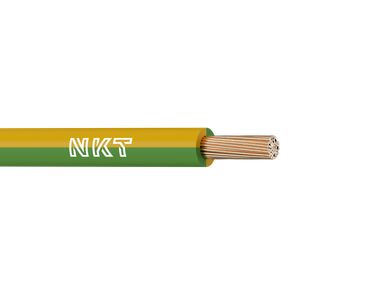

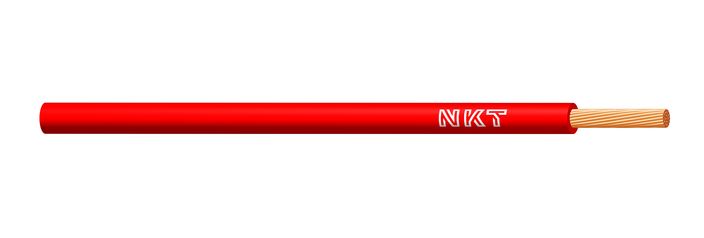

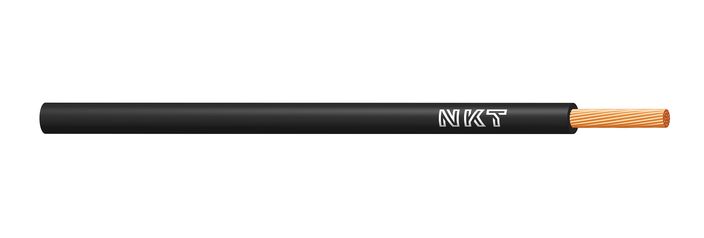

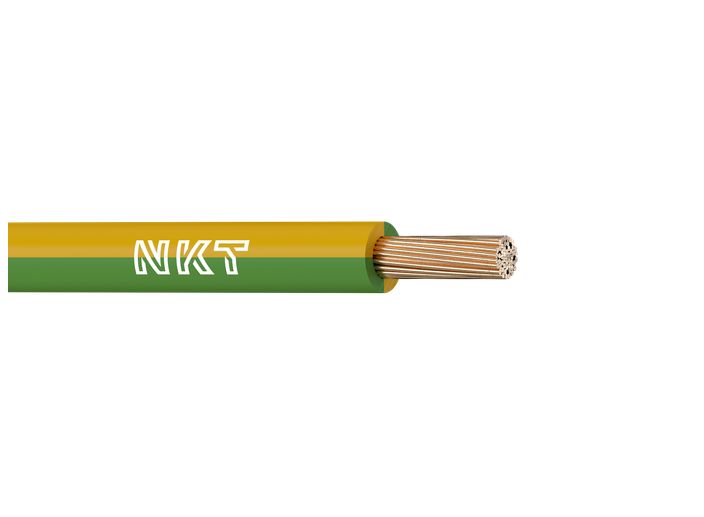

H07V-K

H07V-K is a premium single conductor flexible cable for fixed installations, providing exceptional performance and reliability.
Key features:
·       Voltage: 450/750 V
·       Temperature range: -30°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
·       Min. laying temperature: -5°C
·       Compatibility: EN 50525-2-31, RoHS, REACH
Application:
These cables are intended for installation in air, conduit, installation strips and wiring cabinets. They can supply light sources, control devices and signalling circuits in accordance with regulations.
Construction:
·       Conductor: Copper class 5 (multi-stranded wire)
·       Insulation: PVC
Technical specifications:
·       Cross-section range: from 1.5 mm2 to 25 mm2
·       Insulation thickness: 0.7 mm to 1.2 mm
·       Outer diameter: 2.9 mm to 8.9 mm
·       Cable weight: from 19 kg/km to 269 kg/km
Upgrade your installations with H07V-K cables for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
H07V-K is a premium single conductor flexible cable for fixed installations, providing exceptional performance and reliability.
Key features:
·       Voltage: 450/750 V
·       Temperature range: -30°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
·       Min. laying temperature: -5°C
·       Compatibility: EN 50525-2-31, RoHS, REACH
Application:
These cables are intended for installation in air, conduit, installation strips and wiring cabinets. They can supply light sources, control devices and signalling circuits in accordance with regulations.
Construction:
·       Conductor: Copper class 5 (multi-stranded wire)
·       Insulation: PVC
Technical specifications:
·       Cross-section range: from 1.5 mm2 to 25 mm2
·       Insulation thickness: 0.7 mm to 1.2 mm
·       Outer diameter: 2.9 mm to 8.9 mm
·       Cable weight: from 19 kg/km to 269 kg/km
Upgrade your installations with H07V-K cables for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
