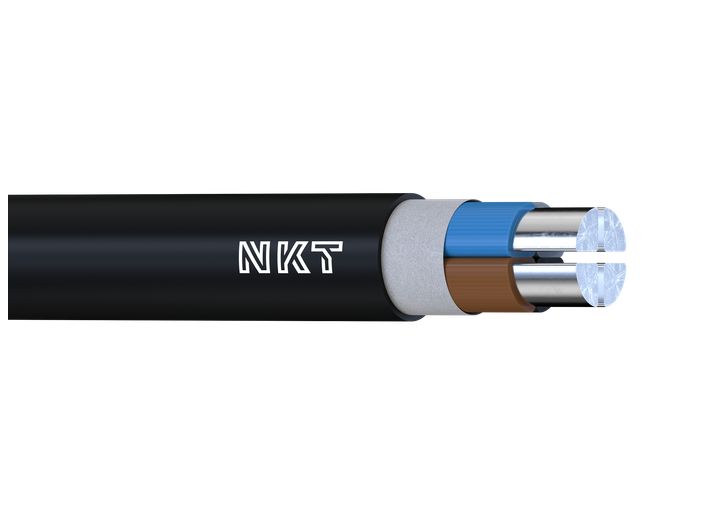

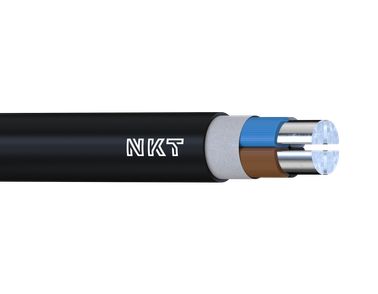

YAKXS 0,6/1 kV

YAKXS is a premium aluminium power cable for fixed installations, providing exceptional performance and reliability both indoors and outdoors.

·       Voltage: 0.6/1 kV

·       Temperature range: -35°C to +90°C (max. conductor temperature: +90°C, in case of short circuit: +250°C)

·       Min. laying temperature: -5°C

·       Compatibility: IEC 60502-1, PN-EN 60332-1-2, RoHS, REACH

Ideal for permanent indoor and outdoor power installations, directly in soil and concrete.

·       Conductor: Aluminium

·       Insulation: XLPE

·       Outer sheath: Black PVC

·       Cross-section range (1÷5)x(16÷240) mm²

·       Insulation thickness: from 0.7 mm to 2.4 mm

·       Outer sheath thickness: from 1.4 mm to 2.8 mm

·       Outer diameter: from 8 mm to 53 mm

·       Cable weight: from 90 kg/km to 3701 kg/km

Upgrade your installations with YAKXS cables for the highest quality and performance. Available below: data sheet (including the specified current carrying capacity of YAKXS cables), DoP declaration, CE declaration, EPD environmental declaration, certificate.
