XRUHAKXS1 12/20 kV

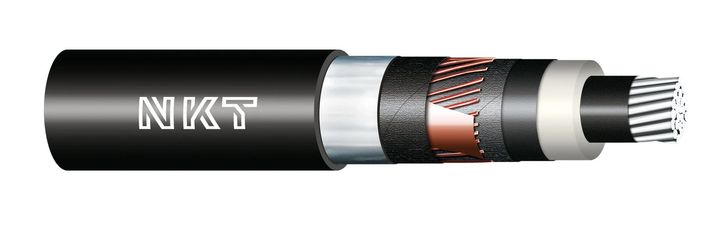

XRUHAKXS1 12/20 kV is a top class medium voltage aluminium power cable with XLPE insulation. The XRUHAKXS1 cable is designed for the transmission of electricity and use in MV power networks with a rated voltage of 12/20 kV.

·       Voltage: 12/20 kV

·       Temperature range: -35°C to +90°C (max. conductor temperature: +90°C, in case of short circuit: +250°C)

·       Min. laying temperature: -20°C

·       Compatibility: PN-HD 620 10-R, RoHS, REACH

Cable intended for laying directly in soil, concrete, cable ducts and directly in the air.

·       Conductor: Aluminium RMC

·       Insulation: XLPE

·       Outer sheath: Black PVC

·       Cross-sectional range 1x(50÷500) mm²

·       Insulation thickness: 5.5 mm

·       Outer sheath thickness: 2.5 mm

·       Outer diameter: 20.5 mm to 38.7 mm

·       Cable weight: from 450 kg/km to 2762 kg/km

Upgrade your power transmission systems with XRUHAKXS1 12/20 kV for the highest quality and performance. Available below: data sheet (including the specified current carrying capacity of XRUHAKXS1 12/20 kV cables), DoP declaration, CE declaration, EPD environmental declaration, certificate.
